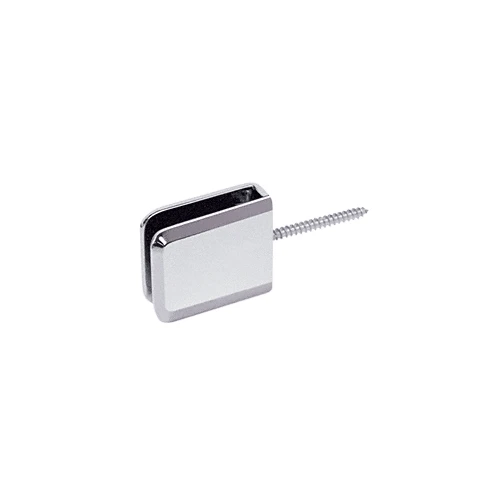

CRL BGC186CH Chrome Square Beveled Wall Mount Movable Transom Clamp

CRL Beveled Wall Mount Movable Transom Clamps are designed to rotate a movable transom off a wall. They can also be used in combination with our Glass-to-Glass Movable Transom Clamps. Clamp must be centered on the transom to achieve balanced movement. Replacement Nylon Washer is Cat. No. 90295A120. Replacement Gasket is Cat. No. BGCU1G.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8″ to 1/2″ (3 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 Require 3/4″ (19 mm) Holes; BGC188 Requires a 3/4″ (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Gaskets
NOTE: Maximum transom size is 16″ x 30″ (406 x 762 mm) wide. Larger transoms require the use of pivot hinges used as transom clamps. Call for details.
