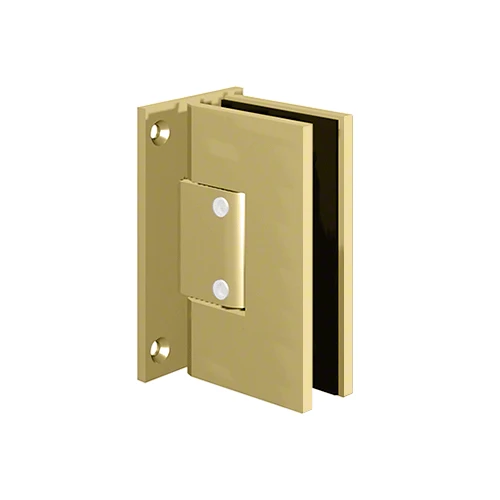

CRL CLS337BR CLEAR SPACE Polished Brass Replacement Wall Mount Hinge

CLEAR SPACE® is a State-of-the-Art Shower and Bath Enclosure system that is as functional as it is beautiful. An industry first elliptical door swing that gets out of the way, creating an open floor space on both sides of the enclosure! Large openings up to 72″ (1.83 m) wide can result (based on a double door scenario), as the door projects only 10-1/2″ (267 mm) into the enclosure, and 10-1/2″ 16-1/2″ (267- 419 mm) out from the enclosure, avoiding sinks, toilets, and shower valves in the open floor space. Natural pivot door operation enhances the user experience, producing door space efficiency, without a header! The Top Door Guide automatically rotates open against the interior wall when the door is operated. CLEAR SPACE® is the perfect companion for assisting physically challenged individuals, because the distance that the door travels toward the wheel chair is drastically reduced, and this is very important when producing wide openings. Natural pivot door operation and assisted opening/closing further enhances ergonomics while assuring that the door stays put in both positions.
FEATURES AND BENEFITS:

The perfect companion for assisting physically challenged individuals.

Produces large openings with minimal use of floor space.

Natural feeling elliptical door swing motion that does not move excessively towards the wheel chair.

Doors can be installed at both sides of an opening.

Can be configured with a pair of doors or with a fixed lite opposite the shower head.

Self-closing, self-opening for final 20 degrees of door swing.

Top Door Guide automatically hides and is unobtrusive at only 1-1/4” (32 mm) tall.

Many fixed lite configurations are compatible, like the ever popular 90 degree return and 135 degree neo angle.

Door swings inwardly with a normal pivoting action when a doorway jamb/stop is not used.

Compatible with bathtubs, raised curbs and flush floors

Available optional header (call for details).
EACH CLEAR SPACE® KIT CONTAINS:

Two – Wall Mount Hinges

Two – 180º Glass-to-Glass Hinges

One – Control Arm (Left or Right)

One – Top Guide
NOTE: For enclosures requiring three Wall Mount and three 180º Glass-to-Glass Hinges, those third hinges must be purchased separately.
SPECIFICATIONS:

Material: Solid Brass

Glass Thickness: 1/2″ or 3/8″ (12 or 10 mm)

Maximum Door Size:
Using two hinges – 36″ (914 mm) wide and 110 lbs (50 kg);
Using three hinges – 36″ (914 mm) wide and 140 lbs (63 kg)
(Do not exceed either width or weight)

Glass Fabrication Required for Hinges and Top Guide
