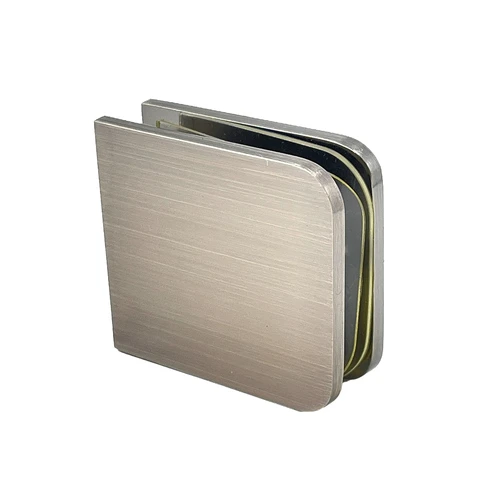

CRL GCB186ABN Antique Brushed Nickel Traditional Movable Wall Mounted Transom Glass Clamp

CRL Standard Movable Transom Clamps can be used to pivot transom panels above the shower door. Wall Mount and 180 Degree Glass-to-Glass Clamps can be used in any combination, depending upon the configuration of the enclosure. Replacement Nylon Washer is Cat. No. 90295A120.
Our Standard and 135 Degree Movable Transom Clamps feature solid brass construction and a variety of finishes to match our complete line of Shower Door Hinges. Appropriate mounting screws and one set of gaskets are included with each Clamp. Extra gaskets (Cat. No. UCG77) may be ordered separately. Glass fabrication required.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 5/16″ to 1/2″ (8 to 12 mm)
Hole Diameter Required: 5/8″ or 3/4″ (16 or 19 mm)
Includes: Gaskets and Mounting Screw
NOTE: Maximum transom size is 12″ x 30″ (305 x 762 mm) wide. Larger transoms require the use of Square or Beveled Transom Clamps, or pivot hinges used as movable transom clamps. Call for details.
