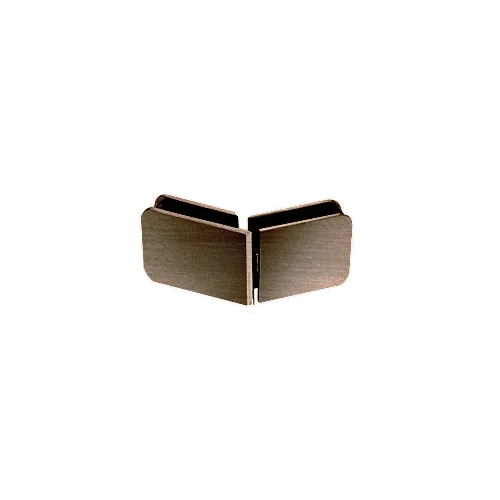

CRL GCB335ABRZ Antique Bronze 135 Degree Movable Transom Clamp

These CRL Clamps can also be used in combination with our Wall Mount Movable Transom Clamp (Cat. No. GCB186), or our 180 Degree Glass-to-Glass Movable Transom Clamp (Cat. No. GCB188). The movable transom and the door should be square cut, while the fixed panel using the 135 Degree Movable Transom Clamp should be mitered at 45 degrees. Clamp should be centered on glass for optimum performance. Replacement parts are Cat. Nos. 90295A120 (Nylon Washer), 193004 (Nylon Lock Nut), 211039 (Flat Head Screw), and UCG77 (Gaskets).
SPECIFICATIONS:
Glass Thickness: 5/16″ to 1/2″ (8 to 12 mm)
Material: Solid Brass
Glass Fabrication Required: 5/8″ or 3/4″ (16 or 19 mm) diameter hole in movable transom, notch in the fixed panel.
Includes: Gaskets
NOTE: Maximum transom size is 12″ x 30″ (305 x 762 mm) wide. Larger transoms require the use of Square or Beveled Transom Clamps, or pivot hinges used as movable transom clamps. Call for details.
