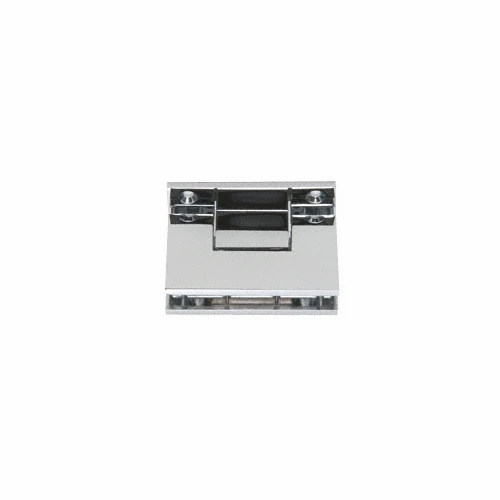

CRL GTC037CH Polished Chrome Geneva 3-Point Movable Square Style Transom Clamp

Original price was: $69.59.Current price is: $48.71.

SKU: GTC037CH Category: Shower Enclosure Glass Clips Tag: CR Laurence

Shop with confidence, we guarantee quality.
Multiple payment options for secure shopping with SSL
Top-Notch Quality
Your satisfaction is 100% guaranteed.

Our CRL 3-Point Movable Transom Clamps provide design alternatives to the traditional side mounted “teeter-totter” application. Mounted to the ceiling instead of the sides of the transom allows more glass exposure. The Clamps will hold at 45 degrees inward, at the closed position, and at 45 degrees outward. The square or beveled appearance matches many of our popular Hinge Series. Accommodates 1/2″, 3/8″, and 5/16″ (12, 10, and 8 mm) thick tempered glass.
SPECIFICATIONS:

Glass Thickness: 5/16″ to 1/2″ (8 to 12 mm)

Material: Solid Brass

Includes: Gaskets, Mounting Screws, Phillips Screws,
Allen Screws, and Glass Fabrication Dimensions

Gaskets are included for 3/8″ and 1/2″ (10 and 12 mm) glass only. If using 5/16″ (8 mm) glass, Cat. No. GEN13 Gaskets must be ordered.
Cut-Out Required
NOTE: Maximum transom size is 28″ W x 12″ H (711 x 305 mm). Two Clamps must be used per transom. It is recommended to come in 6″ (152 mm) to the center of the cutout for each Clamp.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Finish	Polished Chrome
Mounting Type	Ceiling Mount
Material	Brass
Back Plate	Full
Glazing Thickness	5/16, 3/8, 1/2
Edge Profile	Square
Finish/Color	Polished Chrome
Maximum Door Width - 2 Hinges (Inches)	28
