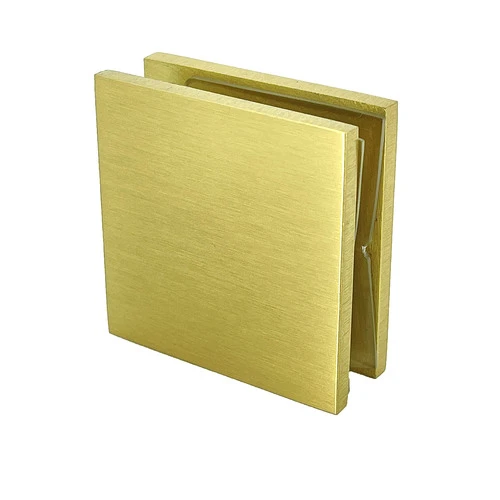

CRL SGC186SB Satin Brass Square Wall Mount Movable Transom Clamp

CRL Square Wall Mount Movable Transom Clamps are designed to rotate a movable transom off a wall. Clamp must be centered on the transom to achieve balanced movement. Maximum movable transom size is 16″ x 30″ (406 x 762 mm). NOTE: Replacement Nylon Washer is Cat. No. 90295A120. Replacement Gasket is Cat. No. SGCU1G.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8″ to 1/2″ (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4″ (19 mm) Holes
Includes: Gaskets and Mounting Screws
NOTE: Maximum transom size is 16″ x 30″ (406 x 762 mm) wide. Larger transoms require the use of pivot hinges used as transom clamps. Call for details.
