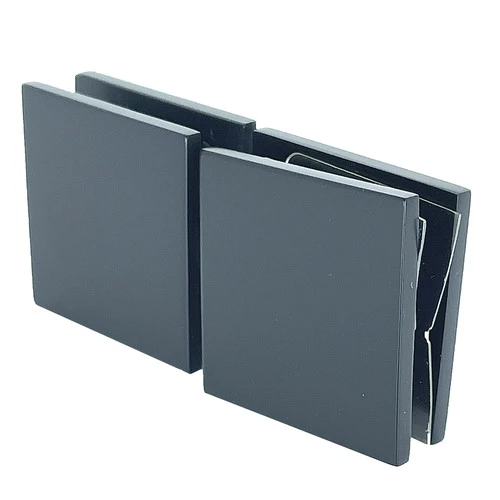

CRL Square 180 Degree Glass-to-Glass Movable Transom Clamps allow the rotation of a movable transom off of an inline fixed glass panel. To assure balanced movement the Clamp must be centered on the transom. Maximum movable transom size is 16″ x 30″ (406 x 762 mm).
NOTE: Replacement Parts are Cat. No.’s 90295A120 (Nylon Washer), 211039 (10-32 x 3/4″ Flat Head Phillips Screw), and 193004 (10-32 Nylon Lock Nut).
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8″ to 1/2″ (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4″ (19 mm) Holes; SGC188 Requires a 3/4″ (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Mounting Screws (for Wall Clamps) and Gaskets
| Size | 4-1/16" x 2" |
|---|---|
| Finish | Matte Black |
